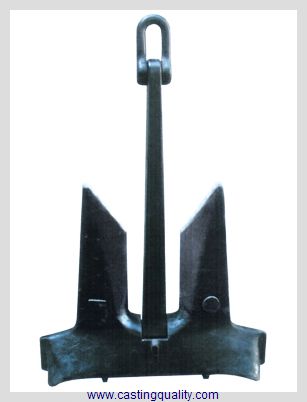

The AC-14 balance anchor is one of the most versatile of the high holding power anchors. It is used in shipping and aquaculture industry.

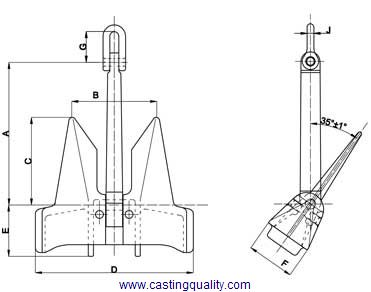

dimensions:
NOMINAL WEIGHT(KG) | A | B | C | D | E | F | G | J |
56 | 612 | 298 | 376 | 555 | 109 | 170 | 115 | 24 |
100 | 745 | 364 | 458 | 675 | 130 | 200 | 130 | 28 |
180 | 909 | 442 | 558 | 822 | 162 | 252 | 160 | 36 |
300 | 1075 | 524 | 660 | 975 | 194 | 298 | 192 | 45 |
428 | 1213 | 590 | 745 | 1098 | 216 | 336 | 215 | 48 |
675 | 1410 | 690 | 868 | 1278 | 250 | 390 | 255 | 60 |
750 | 1450 | 700 | 878 | 1315 | 256 | 396 | 255 | 60 |
910 | 1560 | 760 | 957 | 1410 | 273 | 430 | 255 | 60 |
970 | 1592 | 775 | 978 | 1445 | 284 | 440 | 280 | 62 |
1080 | 1650 | 805 | 1014 | 1495 | 294 | 455 | 280 | 62 |
1305 | 1760 | 858 | 1082 | 1595 | 313 | 485 | 310 | 68 |
1440 | 1818 | 885 | 1118 | 1645 | 324 | 505 | 310 | 68 |
1710 | 1925 | 940 | 1184 | 1745 | 343 | 532 | 340 | 74 |
1845 | 1975 | 965 | 1215 | 1785 | 347 | 546 | 340 | 74 |
2100 | 2065 | 1005 | 1268 | 1865 | 354 | 570 | 380 | 82 |
2475 | 2175 | 1062 | 1340 | 1970 | 385 | 602 | 385 | 82 |
2835 | 2265 | 1105 | 1393 | 2055 | 399 | 625 | 410 | 90 |
3550 | 2455 | 1198 | 1508 | 2225 | 438 | 680 | 415 | 100 |
3940 | 2540 | 1240 | 1562 | 2300 | 453 | 705 | 450 | 100 |
4500 | 2655 | 1295 | 1632 | 2405 | 473 | 735 | 450 | 100 |
4840 | 2720 | 1330 | 1670 | 2465 | 490 | 755 | 480 | 110 |
5610 | 2858 | 1396 | 1758 | 2590 | 509 | 790 | 500 | 110 |
6000 | 2922 | 1426 | 1796 | 2646 | 515 | 810 | 500 | 110 |
6900 | 3062 | 1496 | 1884 | 2775 | 545 | 848 | 540 | 117 |
7800 | 3190 | 1558 | 1962 | 2890 | 569 | 884 | 600 | 130 |
8300 | 3256 | 1590 | 2002 | 2950 | 574 | 902 | 600 | 130 |
9300 | 3382 | 1652 | 2080 | 3064 | 603 | 936 | 630 | 135 |
9900 | 3452 | 1686 | 2124 | 3128 | 616 | 956 | 640 | 140 |
10575 | 3523 | 1720 | 2166 | 3192 | 628 | 976 | 660 | 145 |
11100 | 3589 | 1720 | 2166 | 3192 | 628 | 976 | 660 | 145 |
11700 | 3650 | 1782 | 2245 | 3308 | 648 | 1010 | 680 | 150 |
12300 | 3683 | 1794 | 2260 | 3330 | 655 | 1018 | 700 | 155 |
12900 | 3772 | 1842 | 2320 | 3418 | 670 | 1044 | 700 | 155 |
13500 | 3830 | 1870 | 2355 | 3470 | 682 | 1060 | 730 | 160 |
14100 | 3885 | 1896 | 2389 | 3520 | 689 | 1076 | 730 | 160 |
14700 | 3940 | 1924 | 2423 | 3570 | 700 | 1090 | 730 | 160 |
15400 | 4002 | 1954 | 2461 | 3626 | 710 | 1108 | 730 | 160 |
16100 | 4062 | 1982 | 2498 | 3680 | 721 | 1125 | 770 | 170 |
16900 | 4128 | 2016 | 2538 | 3740 | 721 | 1144 | 770 | 170 |
17800 | 4200 | 2050 | 2583 | 3806 | 725 | 1162 | 800 | 180 |
18800 | 4277 | 2088 | 2630 | 3875 | 729 | 1185 | 800 | 180 |
20000 | 4350 | 2101 | 2694 | 3945 | 729 | 1185 | 820 | 199 |
25000 | 5046 | 2437 | 3125 | 4577 | 846 | 1375 | 848 | 230 |
