SAND CASTING PROCESS

Cast Iron and Carbon Steel, Stainless Steel, Aluminum and Bronze

10gram to 20ton, with CNC machining service

Turn Great Design to Products



INVESTMENT CASTING PROCESS

Best Quality with Best Appearance in Lost Wax Casting

Available for Cast Iron, Carbon Steel, Stainless Steel, Aluminum and Bronze Alloy.

THE QUALITY IS LIFE

Casting Quality only supply qualified castings to our customers, with dimension inspection, mill cert and necessary pictures.

September 11, 2009
Auto Parts Fittigs for Automobiles
Pump Casted Bearing Spider/Retainer, Investment Casting
December 10, 2018
Pump Bearing Spider/Retainer
Stainless Steel Backup Rings
February 22, 2019
Stainless Steel Backup Rings.
Stainless Steel Casting-Internal Ring Gear by investment casting
August 20, 2021
Stainless Steel Ring Gear Casting
July 18, 2009
Stainless Steel Pipe Fittings
Stailess Steel Trolley Casting
December 8, 2014
Stainless Steel Trolley Casting
May 24, 2009
Manhole Cover
June 30, 2010
Fire Hydrant Body
Sand Casting

(Resin Sand Casting and green sand casting)
Grey Iron Castings
Ductile Iron Castings
Stainless Steel Castings
Carbon Steel Castings
Aluminum Castings
Bronze/Brass Casting

Investment Casting

Precision Investment Casting also named as lost wax casting:
Stainless Steel Castings
Carbon Steel Castings
Aluminum Castings or Iron Casting

Shell Casting

Grey Iron Castings
Ductile Iron Castings
Cabon Steel / Alloy Steel Castings

Die Casting

Aluminum Castings
Zinc alloy castings

What can We Do

About Casting Quality

We serve and supply parts, components and products to wide varieties of industries as below application:

Pump Penetrant Testing

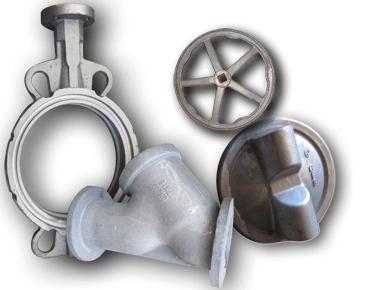

1. Valve Fittings(valve body, wheel, disc, bonnet and others)
2. Pump Parts(Casing, Impeller and others)

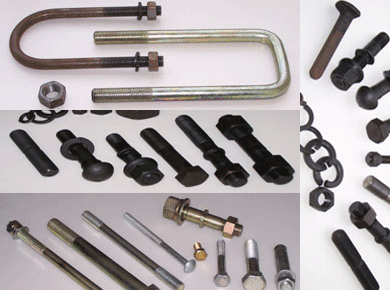

3. Fastener (Bolts, Nuts, Studs and Gaskets)
4. Automobile/ Motorcycle (Brake Drum….)

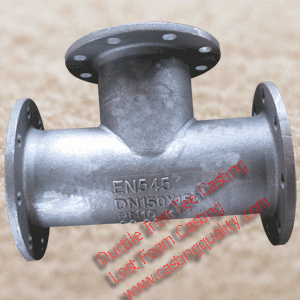

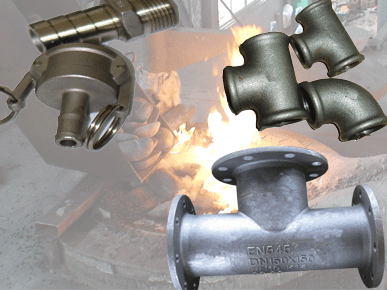

5. Pipe Fittings(malleable iron fittings, threaded stainless steel fittings, ductile iron fittings and others)

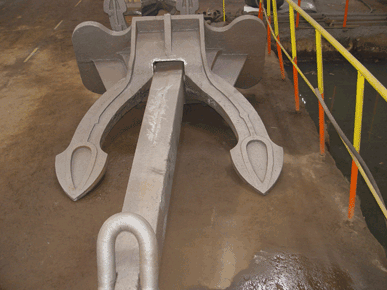

6. Steel Anchor Products.
7. Food Processing.
8. Computer & Communication Hardware.
9. Sporting Equipment.

The Material List

  1. 1
    Grey Cast Iron

    GG10; GG15; GG20; GG25; GG30; GG35
    ASTM A126 No. 20/25/30/35/40/45/50
    EN-GJL-150/200/250/300/350

  2. 2
    Mallealbe Cast Iron

    EN1562 GN-GJMB-300-6; EN-GJMB-350-10
    ISO 5922(BS 6681) B30-06/B32-12/B35-06
    DIN 1692 GTS 35-10
    ASTM A197

  3. 3
    Ductile Cast Iron

    GGG40, GGG50, GGG60, GGG70, GGG80
    ASTM A536 60-40-18; 65-45-12; 70-50-05; 80-60-03; 100-70-03; 120-90-02
    EN-GJS-400-15; 400-18; 450-10; 500-7; 600-3; 700-2; 800-2; 900-2

  4. 4
    Wear Resistant Iron

    12% Cr; Cr26

  5. 5
    Carbon Steel

    ASTM A216: WCA, WCB, WCC,
    ASTM A27 Grade N-1, N-2, U-60-30, 60-30, 65-35, 70-36, 70-40
    ISO 3755: 200-400; 230-450; 270-480; 340-550;
    IS 9477: 410-620, 540-720, 620-820, 840-1030
    DIN 1681: GS-38; GS-52; GS-60; GS-62; GS-70;
    BS3100: A1, A2, A3

  6. 6
    Alloy Steel

    GS-40Mn5; GS20Mn5; GS34-CrMo4;

    ASTM A-732 GR 13Q 8620, 8630, 4130, 4140

  7. 7
    Stainless Steel

    ASTM A743: CF8, CF8M, CF3, CF3M, CF-20, CH20, CA-15, CA-40
    DIN17445: GX6CrNi18-9, GX5CrNiMo18-10

  8. 8
    Duplex Stainless Steel

    CD3MN(SS2205);
    CD4MCu(SS2605);
    CE3MN(SS2507)

  9. 9
    Precipitation Hardened Stainless

    17-4PH; 15-5PH

  10. 10
    Bronze or Brass

    ISO 1338: Cu5Pb5Sn5, CuAl9
    ASTM B584: C83600, C83450, C90500,C94900
    BS1400: LG2, LG1,

  11. 11
    Aluminum Alloy

    BS1490 LM2, LM4, LM5, LM6, LM9, LM12
    ASTM B26: 201, 319, 355, 356,

  12. 12
    Titanium Alloy

    Gr 1, Gr 2, Gr3, Gr4, Gr5, Gr6, Gr7, Gr12

  13. 13
    Stellite Alloy

    Stellite 1, Stellite 3, Stellite 4, Stellite 6, Stellite  6B, Stellite  6K, Stellite 12, Stellite 19, Stellite 20, Stellite 21, Stellite 25, Stellite 31, Stellite 156, Stellite 157, Stellite 158W, Stellite 107, Stellite 190, Stellite 694, Stellite F

WHAT WE ARE DOING

OEM Service for Mechanical Industry

Flanged Track Wheels Roller, Sand casting with CNC machining
Flanged Track Wheels

Cast Iron Wheels was made by sand casting process, it's also named as guide rollers or Track casters for railway, Flanged Track Wheels, Flange Track Roller,Industrial Track wheels,Steel Rail Wheels....

Ductile Iron Spindle Housing Casting
Ductile Iron Spindle Housing

Spindle Housing for Shaft or Stem or bearing by Sand Casting. the Material can be: Ductile Iron Casting GGG40, GGG50,GGG60,GGG70, GGG80...

stainless steel adapter
Stainless Steel Adapter Casting

Stainless steel Adapter is made by precision investment casting (silica sol lost wax) process, the detailed metal grade :  CF8/CF8M/CF3/CF3M etc. As expert in metal casting field, Casting Quality Industrial can provide most metal castings, include stainless steel and carbon steel, gray iron and duct...

Stailess Steel Trolley Casting
Stainless Steel Trolley Casting

Stainless steel Trolley is made by precision investment casting (Water glass) process, it can be very precision dimension without any machining. All castings will be inspected by special tools as buyers requirement....

Technolgoy

25 Jul 09
How To Buy Forgings

Close cooperation between buyers and producers of forgings has always been a vital part of achieving...

20 Nov 18
Stainless Steel SS321

Stainless steel 321 for Sand Casting and Precision Investment Casting process...

30 Nov 18
Carbon Steel A27 GR 65-35

Grade 65-35 [450-240] (J03001) in ASTM A27 standard for Sand Casting and Lost Wax Precision Investme...

How to Purchase?

Follow below process for all products

  1. 1
    Detailed Drawings

    CAD/PDF drawing to show:

    • Tolerance
    • Materail Grade
    • Unit weight

    IGS/STEP drawings for Solidworks

  2. 2
    Pattern or Tools

    Generally the tools will need 15days.

  3. 3
    First Sample

    Once the pattern is ok, the first castings will be arranged immediately. Sand casting need about 5days, and investment casting need about 10days.

  4. 4
    Sample Inspection

    Dimension Inspection
    Appearance Inspection

  5. 5
    Sample Approval

    One or Two casting Sample will be provide for clients approval.

  6. 6
    Bulk Production

    We will update the bulk production status every week

  7. 7
    Inspection before delviery

    Material Inspection
    Dimension Inspection
    Packing Inspection
    Production Apperance
