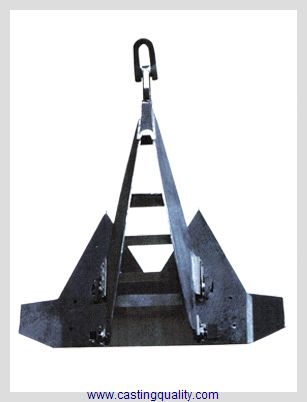

high holding power anchor, welded type. Stevpris anchor Widely used on oil drilling platforms. With super holding power and good workmanship.
LR, GL, BV, ABS cert could be provided.
Unit Weight: 1500kgs to 25000kgs.
Surface Finish: Black Tarred Painting
Package: Nude Package
Delivery Time: Around 30-60 days.

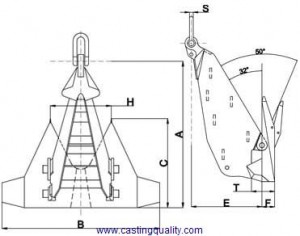

Stevpris AnchorStevpris Anchor
Stevpris Anchor

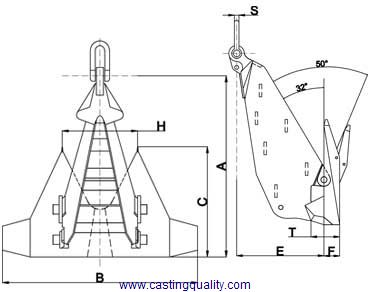

NOMINAL WEIGHT(KG) | A | B | C | E | F | H | T | S | shackle mondel |
1000 | 2580 | 2780 | 1582 | 1314 | 236 | 1074 | 430 | 62 | a14 |
1500 | 2954 | 3184 | 1812 | 1505 | 271 | 1230 | 493 | 80 | a17 |
3000 | 3721 | 4011 | 2283 | 1896 | 342 | 1550 | 622 | 90 | a19 |
5000 | 4412 | 4756 | 2707 | 2248 | 406 | 1837 | 738 | 110 | a23 |
7000 | 4910 | 5290 | 3011 | 2500 | 453 | 2045 | 825 | 117 | a25 |
8000 | 5161 | 5563 | 3166 | 2629 | 474 | 2149 | 862 | 130 | a37 |
10000 | 5559 | 5992 | 3410 | 2832 | 511 | 2315 | 929 | 140 | a29 |
12000 | 5908 | 6368 | 3624 | 3010 | 543 | 2460 | 988 | 150 | a31 |
14000 | 6219 | 6704 | 3815 | 3169 | 572 | 2590 | 1040 | 160 | a33 |
15000 | 6364 | 6860 | 3904 | 3242 | 585 | 2650 | 1064 | 170 | a34 |
18000 | 6763 | 7290 | 4149 | 3446 | 622 | 2816 | 1131 | 180 | a35 |
20000 | 7004 | 7550 | 4297 | 3569 | 644 | 2917 | 1171 | 190 | a37 |
22000 | 7230 | 7794 | 4436 | 3684 | 665 | 3011 | 1209 | 200 | a39 |
25000 | 7545 | 8133 | 4629 | 3844 | 694 | 3142 | 1262 | 200 | a39 |
30000 | 8018 | 8645 | 4919 | 4085 | 737 | 3339 | 1341 | 220 | a42 |
