Quality Control Process

Based ISO9001 quality system, we adopt many processes to control the quality of sand casting and investment casting process.

From the raw material to final casting products, we monitor everything of sand casting and investment casting process.

How to control the quality? The necessary facilities will be widely used in every program:

1. Raw Material Quality Control: Generally, we should be check the chemistry property as new raw material coming. The raw material cover pig iron, strap steel, coal and sand

2. Production quality control: the Working Instruction will be confirmed before production. Then we will care every process based programs. Especially the first sample must be checked carefully.

3. We will check the chemistry again when the products are finished. We also check the mechanical property, such as tensile strength, yield strength, elongation and hardness.

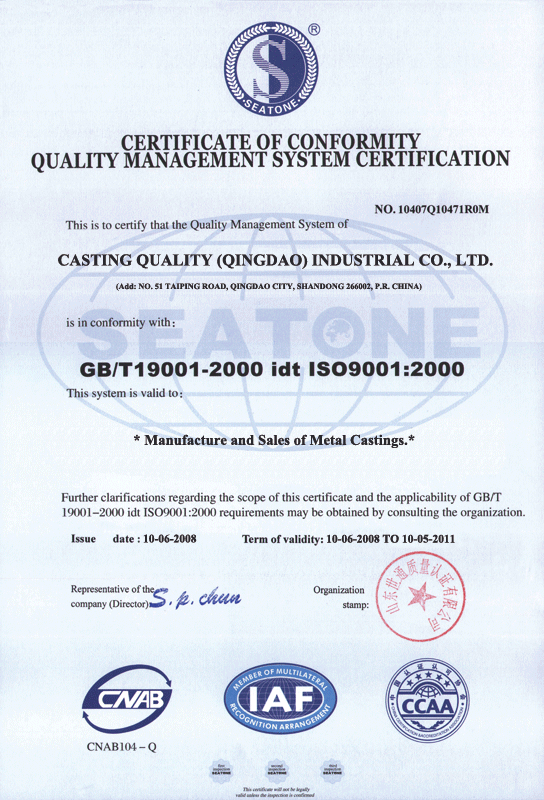

ISO9001 Cert

ISO9001 Cert

4. To find the inner defect, we also use non-destructive method to check the products, such as ultrasonic testing, and radiography inspection. To find the surface crack, the  magnetic particle testing and penetrating testing are also choices.

5. We will keep the records for about half years , then we will trace every batch.

Experienced inspection team of Casting Quality conducts the entire quality control procedure from raw material to finished products. All inspectors are well trained and have rich product knowledge & inspection experiences.
* Raw Material Control.
* Chemistry Spectrum Analysis
* Mechanical Property
* Metallographic Analysis
* Ultrasonic Testing
* Magnetic Testing.
* Radiographic Testing.
* Dimension Inspection.
* Visual Inspection
* Dimension Checking
* Chemical Analysis
* Penetrant Testing
* Leak Testing
* Hardness Test

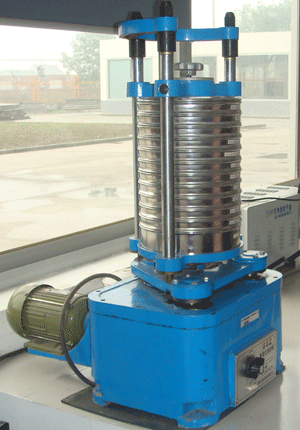

Sand Sieving Machine

Sand Sieving Machine for analysis sand Spectrum for chemistry analysis

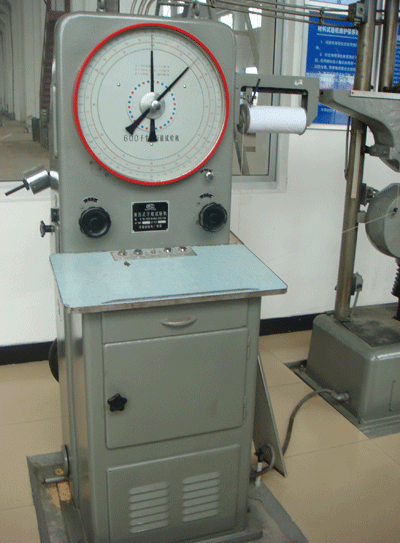

Machenical Property Teting

Mechanical Property Testing,include tensile strength,yield strength and elongation.

ultrasonic examination

Ultrasonic examination
